Wallshell Glass Series   >  Bi-Folding Door

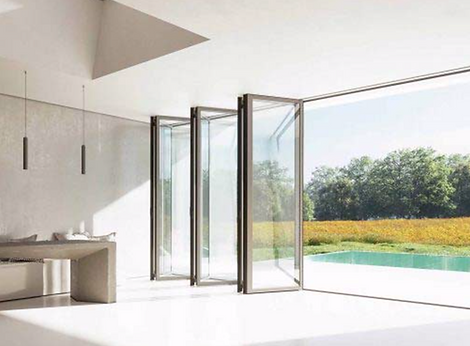

Bi-Folding Glass Door

Bi-Folding Door
Superior Performance

  • Aluminum frame

  • Exceptional quality which operates a multi-point locking function

  • Adaptable wide range of bi-folding door configurations

  • Integrated Internally fitted, retractable fly screen option available

  • Full perimeter, continuous weather seals provide cost-effective weatherproofing and acoustic performance

  • Low sill for wheelchair access available

Frame Colors
Bronze Anodized.png

Frosted Black

Clear Anodized.png

White Powder Coating

Timber Compsite.png

Wood Cladding

*The color can be customized to better match your project.

Bi-Folding Door
Bi-Folding Door
Specifications

Panel Measures

  • Width Limitation: 40 inch

  • Height Limitation: 118 inch

Glazing Details

  • Single Glazed: 6 - 13.5mm

  • Double Glazed: 18 - 30 mm

Thermal Performance

  • Uw range SG: 4.4 - 6.2

  • SHGC range SG: 0.26 - 0.59

Wind Load Resistance: 2800 Pa

Water Tightness: 300 Pa

Sound Proof: 39 dB

Wallshell Bi-Folding Glass Door can be matched with different frame widths and grid styles. This series can be used both outdoors and indoors.
Bi-Folding Door
